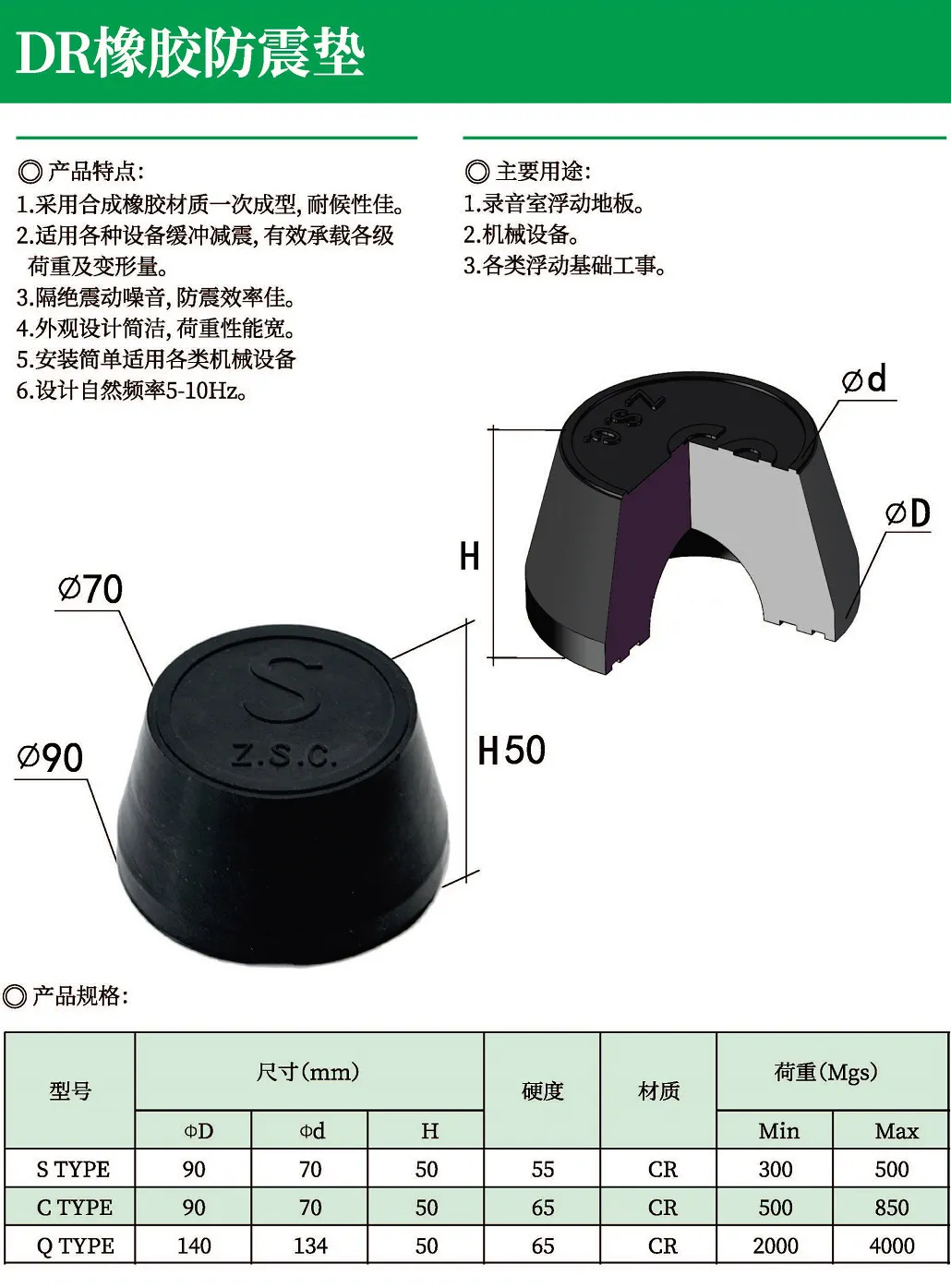

DR橡胶防震垫
特性:
*采用合成橡胶材质一次成型,耐候性佳。
*适用各种设备缓冲减震,有效承载各级荷重及变形量。
*隔绝震动噪音,防震效率佳。
*外观设计简洁,荷重性能宽。
*安装简单适用各类机械设备
*设计自然频率5-10Hz。

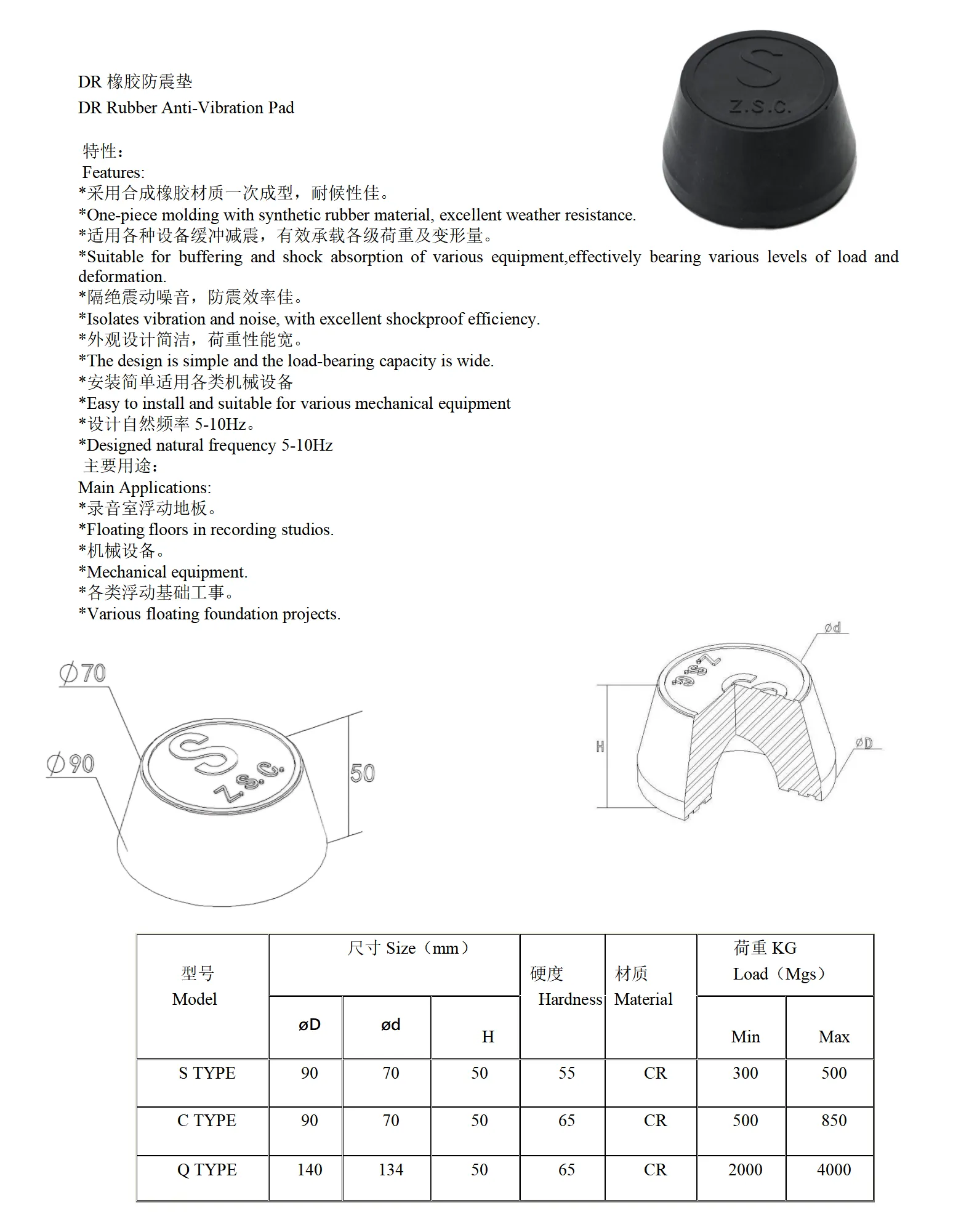

DR Rubber Anti-Vibration Pad
Features:
*One-piece molding with synthetic rubber material, excellent weather resistance.
*Suitable for buffering and shock absorption of various equipment,effectively bearing various levels of load and deformation.
*Isolates vibration and noise, with excellent shockproof efficiency.
*Simple appearance design,wide<operation index="7" type load-bearing performance</span>.
*Easy to install and suitable for various mechanical equipment
*Designed natural frequency 5-10Hz.
主要用途:
*录音室浮动地板。
*机械设备。
*各类浮动基础工事。翻译成英文
Main Applications:
*Floating floors in recording studios.
*Mechanical equipment.
*Various floating foundation projects.

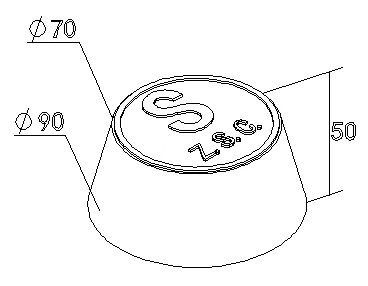

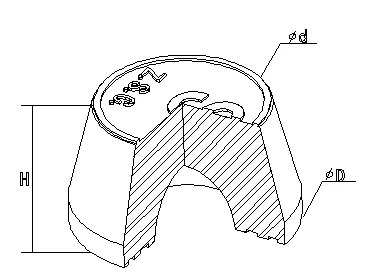

型号Model | 尺寸Size(mm) |
硬度 Hardness
| 材质
Material
| 荷重 Load(Mgs) | |||
øD | ød | H | Min | Max | |||
S TYPE |
90 | 70 | 50 | 55 | CR | 300 | 500 |
C TYPE |
90 | 70 | 50 | 65 | CR | 500 | 850 |
Q TYPE |
140 | 134 | 50 | 65 | CR | 2000 | 4000 |
