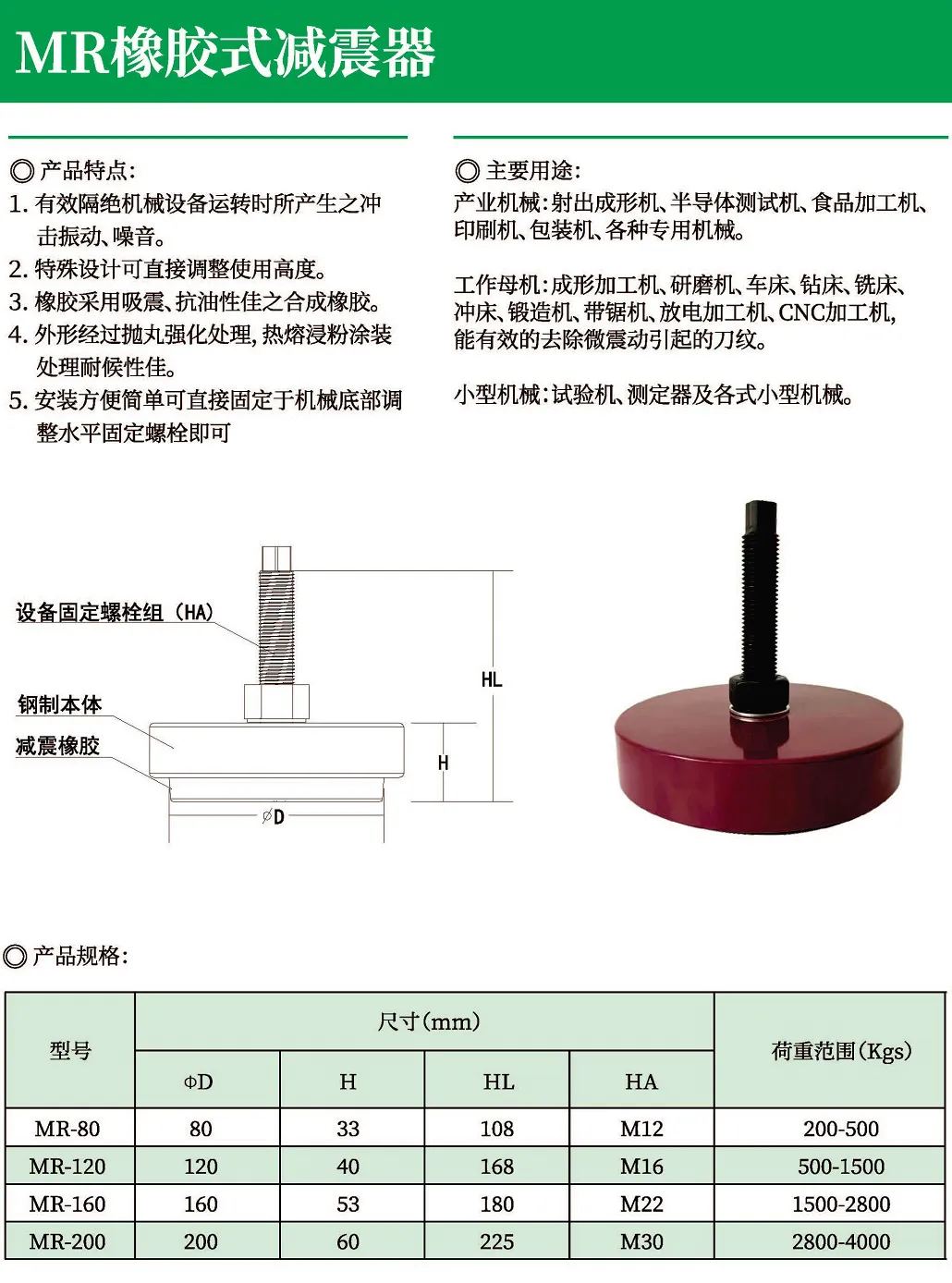

MR橡胶式减震器
►产品特色:
1. 有效隔绝机械设备运转时所产生之冲击振动、噪音。
2. 特殊设计可直接调整使用高度。
3. 橡胶采用吸震、抗油性佳之合成橡胶。
4. 外形经过抛丸强化处理,热熔浸粉涂装处理耐候性佳。
5. 安装方便简单可直接固定于机械底部调整水平固定螺栓即可
►主要用途:
产业机械:射出成形机、半导体测试机、食品加工机、印刷机、包装机、各种专用机械。工作母机:成形加工机、研磨机、车床、钻床、铣床、冲床、锻造机、带锯机、放电加工机、CNC加工机。小型机械:试验机、测定器及各式小型机械。

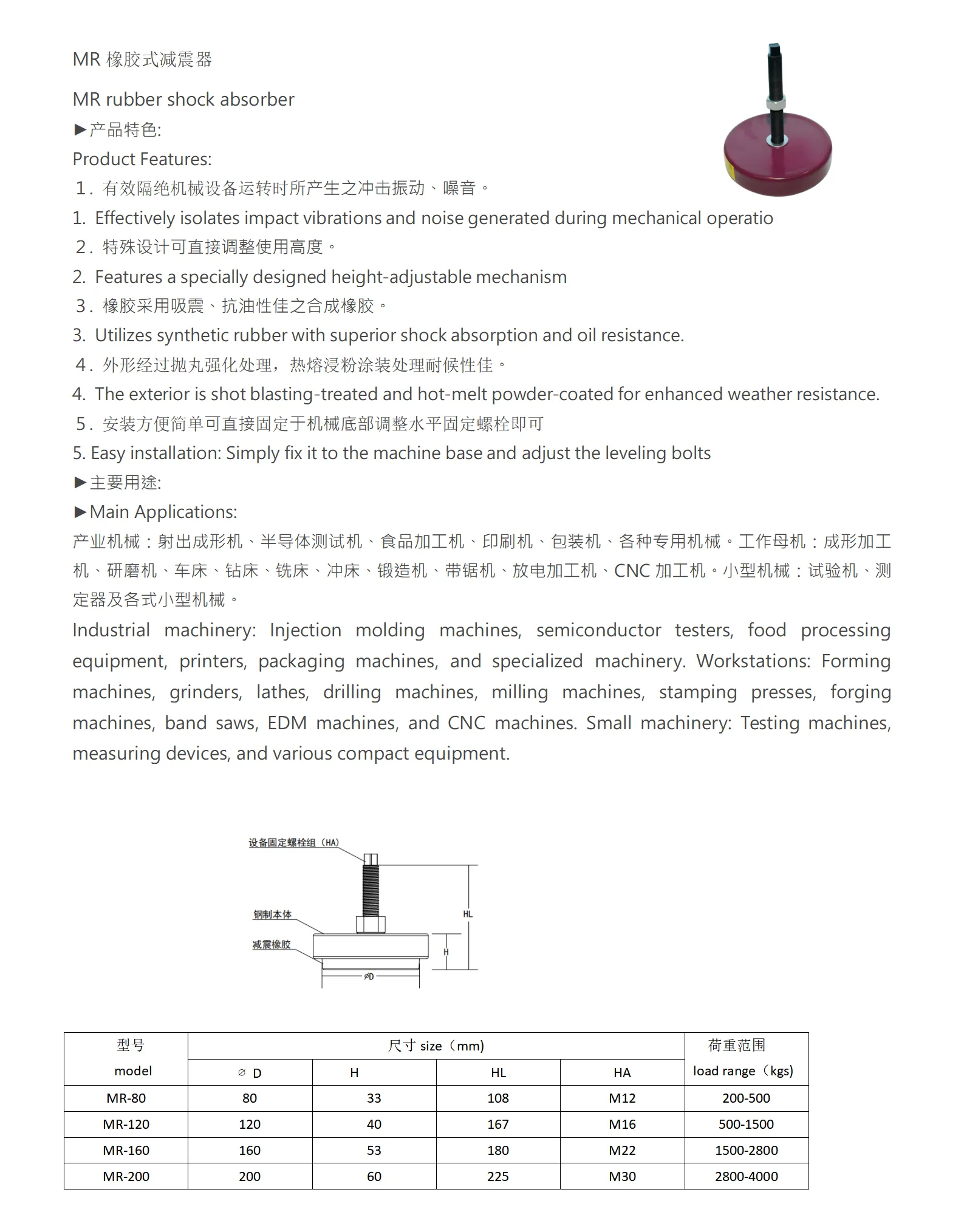

MR Rubber Shock Absorber
►Product Features:
1. Effectively isolates shock, vibration, and noise
generated during the operation of mechanical equipment.
2. Special design allows direct adjustment of usage height.
3. The rubber uses synthetic rubber with
excellent shock absorption and oil resistance.
4. The appearance is treated with shot peening reinforcement and hot-melt dip powder coating for excellent weather resistance.
5. Easy and simple installation; can be directlyfixedto the bottom of the machineand adjusted with horizontal fixing bolts
►Main Applications:
Industrial Machinery: Injection molding machines, semiconductor testing machines, food processing machines, printing machines, packaging machines, various special-purpose machines. Machine Tools: Forming machines, grinders, lathes, drilling machines, milling machines, punch presses, forging machines, band saws, EDM machines, CNC machining centers. Small Machinery: Testing machines, measuring instruments, and various small machines.

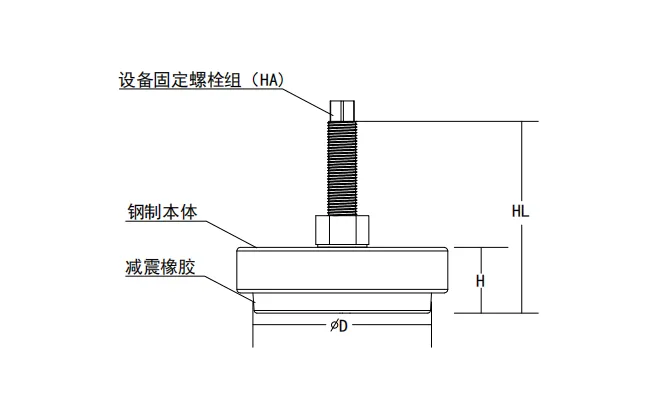

型号Product Model | 尺寸Size paraneters(mm) | 荷重范围Rated load(kgs) | |||
∅D | H | HL | HA | ||
MR-80 | 80 | 33 | 108 | M12 | 200-500 |
MR-120 | 120 | 40 | 167 | M16 | 500-1500 |
MR-160 | 160 | 53 | 180 | M22 | 1500-2800 |
MR-200 | 200 | 60 | 225 | M30 | 2800-4000 |
