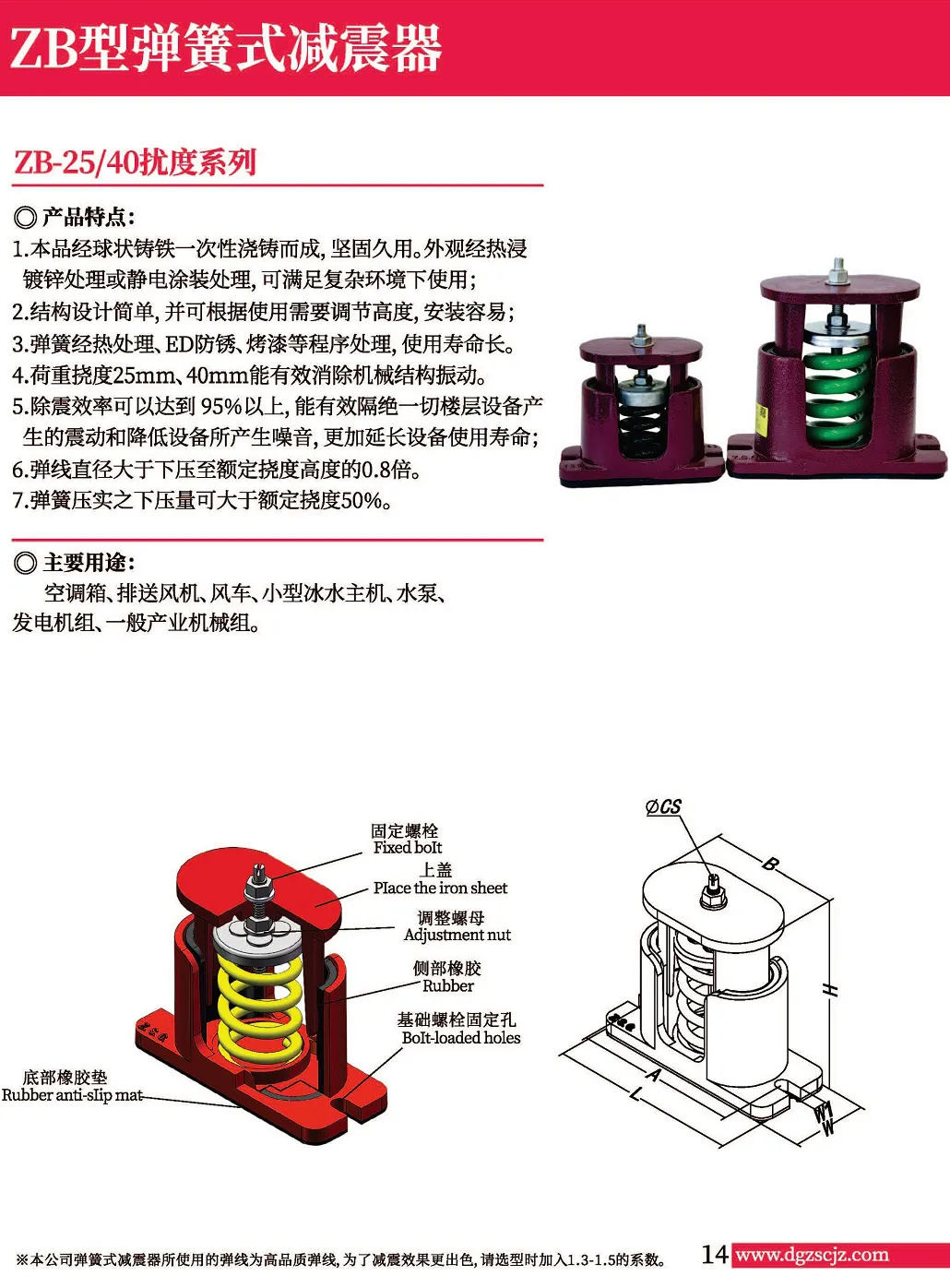

ZB型弹簧式减震器

1.本品经球状铸铁一次性浇铸而成，坚固久用。外观经热浸镀锌处理

或静电涂装处理，可满足复杂环境下使用；

2.结构设计简单，并可根据使用需要调节高度，安装容易；

3.弹簧经热处理、ED防锈、烤漆等程序处理，使用寿命长。

4.荷重挠度25mm、40mm能有效消除机械结构振动。

5.除震效率可以达到 95%以上，能有效隔绝一切楼层设备产生的

震动和降低设备所产生噪音，更加延长设备使用寿命；

6.弹线直径大于下压至额定扰度高度的0.8倍。

7.弹簧压实之下压量可大于额定扰度50%。

主要用途

空调箱、排送风机、风车

小型冰水主机、水泵

发电机组、一般产业机械组

ZB Type Spring Shock Absorber

1. This product is made of ductile iron through one-time casting, which is sturdy and durable. The appearance is treated with hot-dip galvanizing

or electrostatic coating, which can be used in complex environments;

2. Simple structural design, height adjustable according to usage needs, easy to install;

3. The spring undergoes heat treatment, ED anti-rust, baking paint and other processes, with a long service life.

4. Load deflections of 25mm and 40mm can effectively eliminate mechanical structure vibration.

5. The shock absorption efficiency can reach more than 95%, which can effectively isolate all vibrations generated by floor equipment

and reduce noise generated by equipment, further extending the service life of the equipment;

6. The spring wire diameter is greater than 0.8 times the height when pressed down to the rated deflection.

7. The compression amount under spring compaction can be greater than 50% of the rated deflection.

Main Applications

Air conditioning units, exhaust fans, wind turbines

Small chiller units, water pumps

Generator sets, general industrial machinery units
